Large ceramic basins are easy to warp mainly because of large structural spans, insufficient support, uneven drying shrinkage and concentrated firing stress.
In ceramic sanitary ware production, a large basin is not simply an enlarged standard basin. It has a wider bottom, longer edges and more stress-sensitive areas, requiring stricter control of wall thickness, drying uniformity, kiln support and firing curve. If wall thickness is uneven during forming, moisture migration is inconsistent during drying, or support and temperature control are unstable during firing, warping, twisting and uneven installation surfaces may occur. |  |

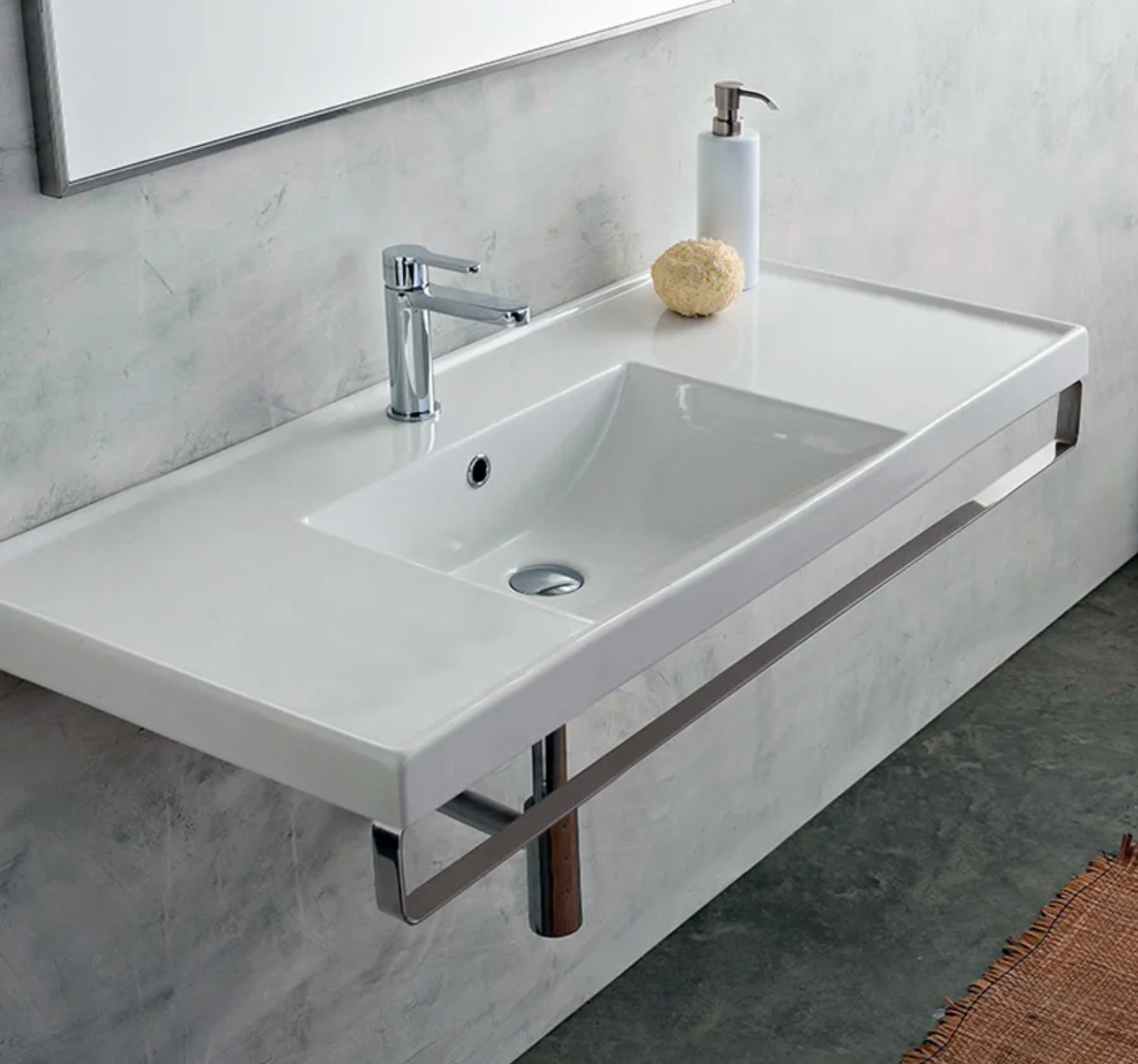

A large ceramic basin refers to a sanitary ware product with a larger length, width or countertop span than standard basins. Typical examples include large countertop basins, integrated basins, double basins and long washbasins. These products are made through slip casting, drying, glazing and high-temperature firing. Because of their size and structural span, they require stricter control of support, shrinkage and firing stability. Therefore, warping in large basins is not simply a kiln problem. It is the result of forming, drying and firing interacting with each other.
1. Large span and insufficient support
Large basins have wide bottoms, long edges and more unsupported areas. If the structure does not include enough support surfaces, reinforcement ribs or proper thickness transitions, the green body may sag or twist during demolding, handling, drying and firing.
2. Uneven wall thickness creates uneven shrinkage
The basin bottom, rim, drain area and reinforced sections often have different thicknesses. Thick areas dry slowly and shrink later. Thin areas dry faster and shrink earlier. This uneven shrinkage creates internal stress, which may appear as warping, twisting or an uneven installation surface.
3. Uneven drying is a high-risk stage
Digitalfire’s drying shrinkage reference explains that ceramic bodies shrink as they move from wet to dry. For large basins, moisture migration is harder to keep uniform across the whole surface. If temperature is too high, airflow is too strong or support is uneven, one side may shrink earlier than the other, causing warping.
4. Firing stress amplifies earlier problems
Digitalfire’s warping reference notes that ceramic ware may warp during firing because of body formulation, vitrification, support and firing conditions. Large basins become weaker at high temperature. If kiln support is uneven, kiln temperature varies or cooling is too fast, earlier stress from forming and drying can be amplified.
Structural design: Optimize bottom support, rim thickness and reinforcement layout.
Forming control: Stabilize slip density, flowability, casting time and wall thickness.
Drying control: Manage temperature, humidity, airflow and support in stages.
Kiln loading: Use suitable setters and keep support points balanced.
Firing control: Adjust heating, soaking and cooling curves to reduce thermal stress.
Data traceability: Record forming batches, drying curves, kiln position and deformation results.
Industrial sanitary ware drying systems emphasize drying process control as a key factor in finished product quality. The study Ceramic sanitary wares: Prediction of the deformed shape after firing also notes that sanitary ware can undergo significant deformation during drying and firing due to shrinkage and plastic strain.
Large ceramic basins warp because large structural spans, uneven shrinkage and high-temperature stress act together. Insufficient support allows the body to deform. Uneven drying creates internal stress. Firing amplifies earlier defects. For ceramic sanitary ware factories, controlling basin warping cannot depend on final correction. It requires full-process control from product design, forming parameters, drying schedules, kiln support and firing curves.
Q1: Why do large basins warp more easily than standard basins?
A: Large basins have wider spans, longer rims and larger unsupported areas, making them more sensitive to uneven shrinkage and insufficient support.
Q2: At which stage does basin warping mainly occur?
A: The highest risk is during drying and firing, but the root causes often begin with wall-thickness variation and structural support in the forming stage.
Q3: What is the most important way to reduce warping?
A: The key is to stabilize wall thickness, improve drying uniformity, optimize kiln support and match the firing curve to the product structure.
